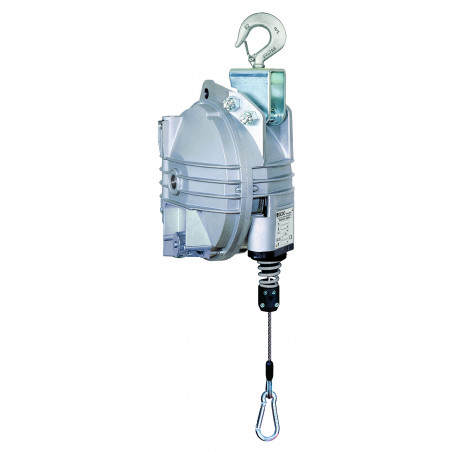

Tool rope balancer 9424
€2,128.00
€1,702.40
Save 20%
Tax excluded
2 weeks + transport
Tool rope balancer 9424 - Capacity Kg : 130->150 Stroke mm : 2500
Tool rope balancer 9424 - Capacity Kg : 130->150 Stroke mm : 2500
- Ribbed and sealed monobloc construction in aluminium alloy.
- Stainless steel rope.
- Adjustable capacity by means of a worm screw.
- Auxiliary safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Centrifugal safety device.
- Upper rotary suspension with safety hook.
- Locking device to block the load at any height.
- Adjustable stroke limiting device.
- Taper drum rotating on ball bearings.
- Cable guide in antifriction material.
- Rotary upper hook with ball bearing.
- Lining up upper hook.
- Visible cable for inspection.
- Inert spring drum assembly.
- Spring balancer.
Weight Kg: 38,83
9424
Data sheet
- Capacity (kg)
- 130÷150
- Stroke (mm)
- 2500
- Body
- Aluminium
- Cable
- Inox
- Weight (kg)
- 38,83
- Explosion proof
- No
- Locking system
- Avec
Sans
Specific References
- EAN13
- 3701110401707
